AHJL BIGJOHN

AHJL “Big John” Hopper Wagon HO – Highly detailed HO scale model of the unique Australian National “Big John” hopper, designed for accurate industrial coke and steelworks railway operations.

Product Description

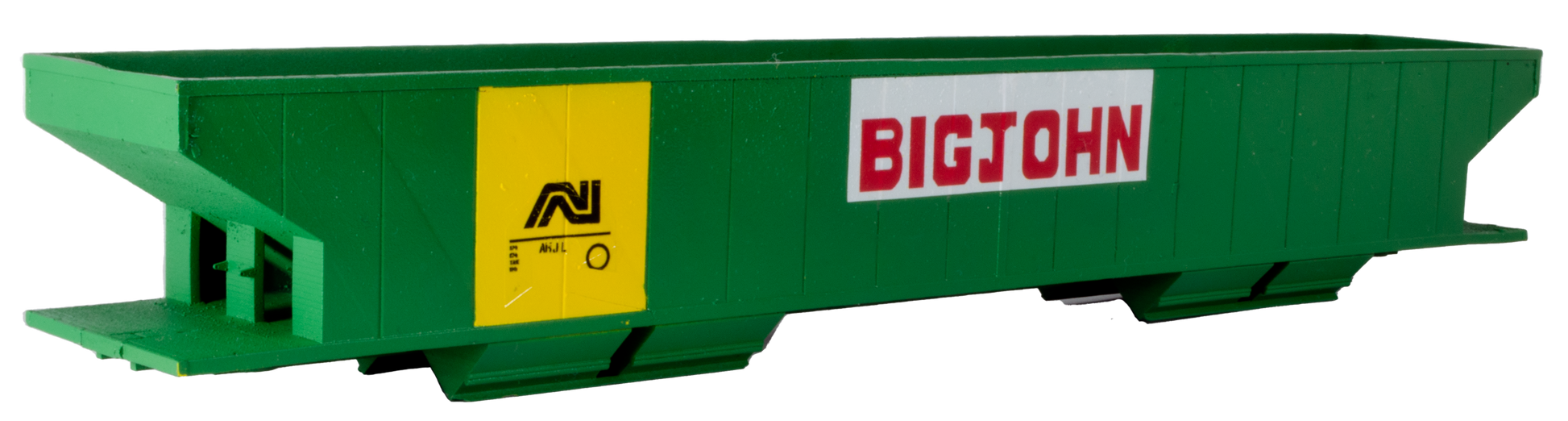

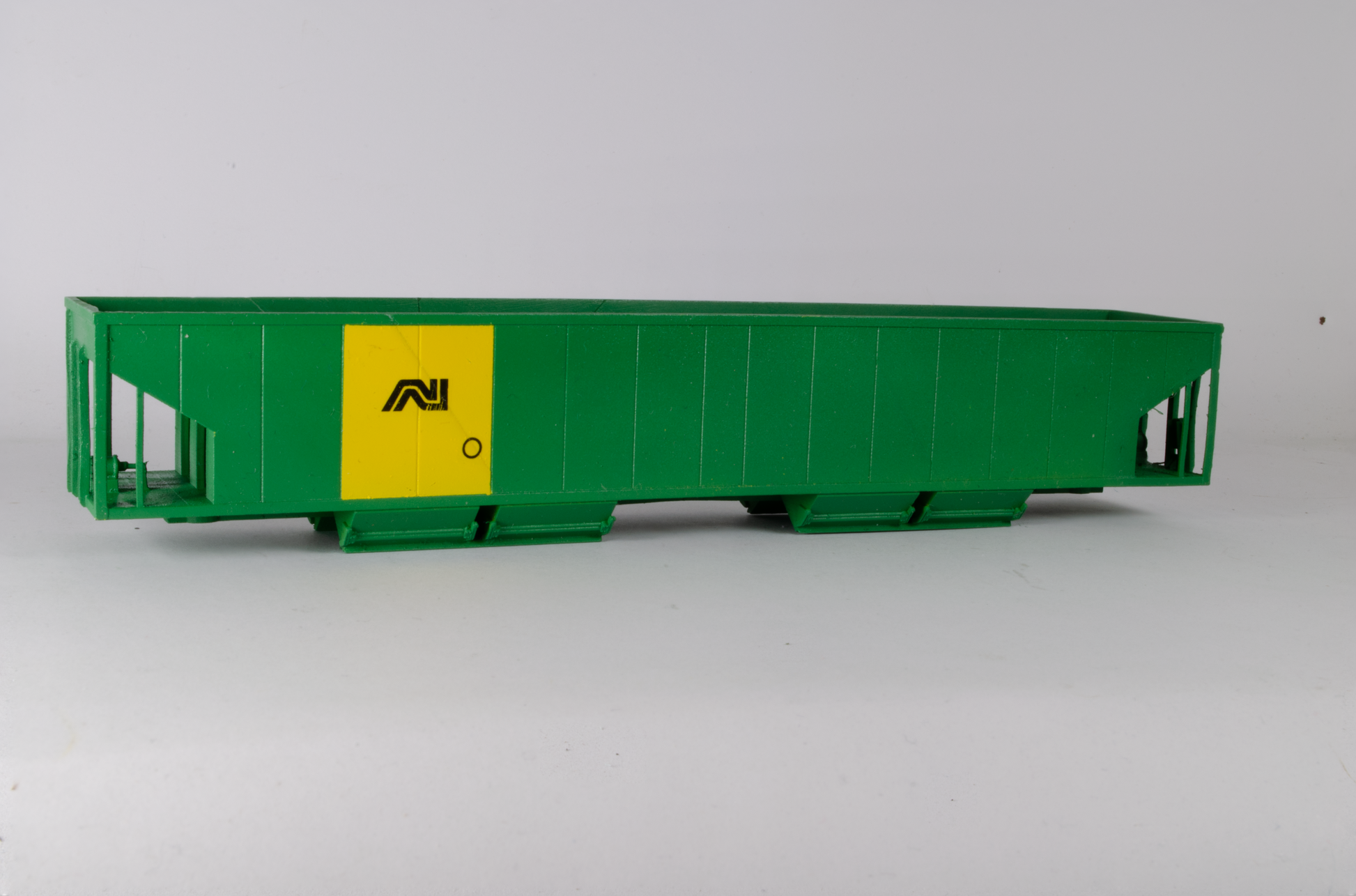

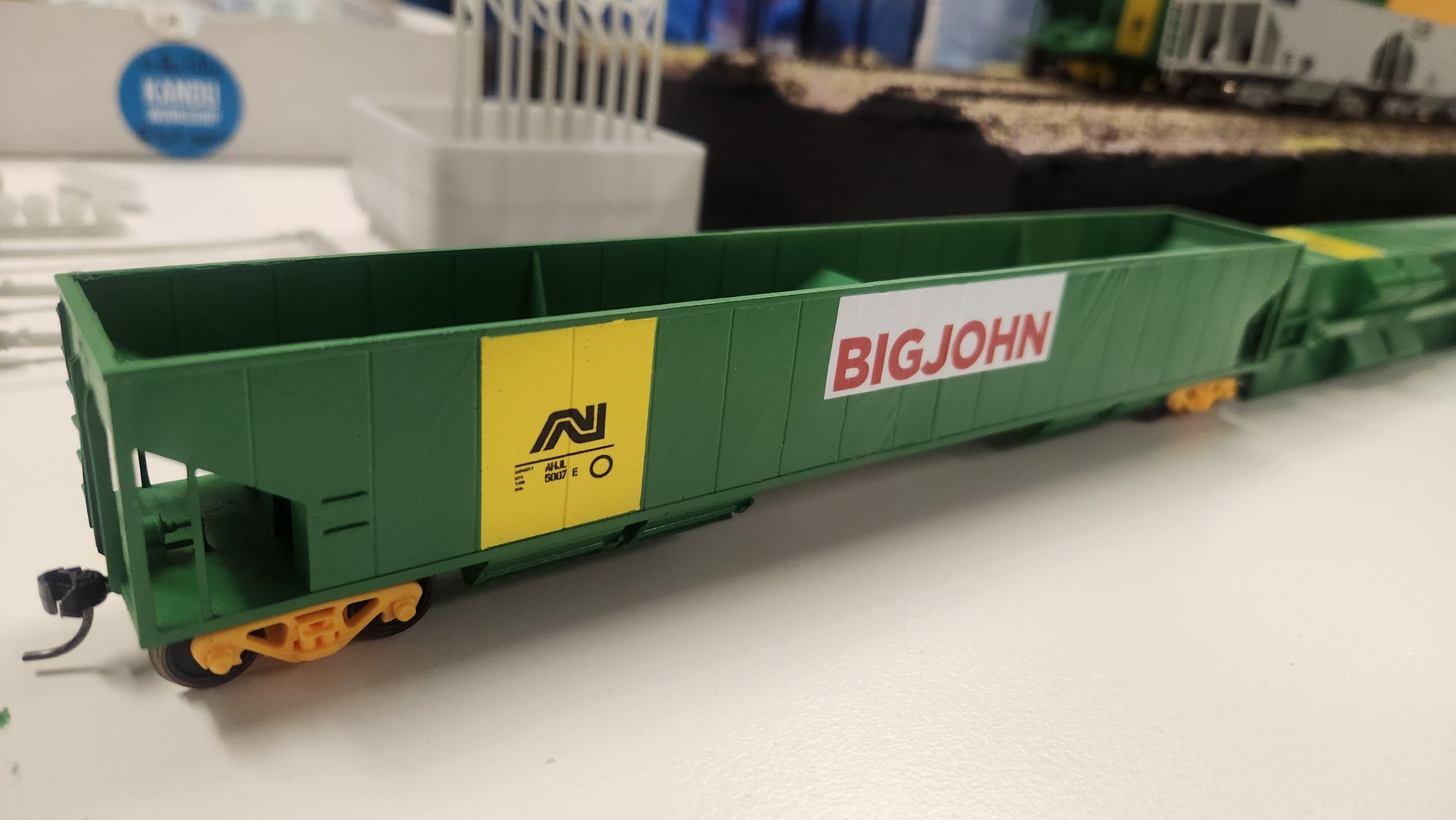

This model represents the one-off “Big John” version of the Australian National AHJL hopper wagon, used in industrial service associated with coke transport at Whyalla. It is a distinctive variation of the AHJL class and is well suited to layouts depicting heavy industrial and steelworks traffic.

Supplied as a resin kit, this HO scale model is designed for modellers to assemble, finish, and detail to match their chosen prototype. The “Big John” hopper is ideal for layouts focused on Whyalla industrial operations, steel-related traffic, and dedicated block wagon consists.

Ideal For

• Australian prototype modellers
• Industrial and steelworks layouts
• Whyalla coke traffic modelling

Quick Specifications

• Scale: HO scale
• Operator: Australian National
• Era: Australian National industrial operations era
• Assembly: Resin kit
• Skill level: Intermediate

Prototype Information

• Real-world item: AHJL “Big John” hopper wagon
• Operator: Australian National
• Era: Australian National era
• Primary use: Coke transport

The AHJL wagons were created by welding two H hoppers together, with material cut from each end to produce the final wagon length. “Big John” was a one-off variation of this concept, retaining the extra length because the end sections were not cut back in the same way as the standard AHJL wagons. This made it a distinctive and recognisable wagon, particularly suited to modelling Whyalla industrial operations and coke traffic linked to steelworks activity.

Model Description

• Material: UV-cured resin
• Construction: Detailed resin body and components designed for assembly and finishing
• Assembly required: Yes
• Painting required: Yes
• Decals included: Yes, AHJL 5007 and BIG JOHN decal included
• Finish: Supplied unassembled and unpainted

This model is intended for hobbyists comfortable with assembly, cleanup, painting, and final detailing. Minor finishing work may be required before assembly, as is typical with high-detail resin kits.

Kit Contents

This kit includes:

• AHJL “Big John” hopper body components
• Resin printed detail parts
• Main components required for assembly
• Load Insert Included

Not included unless stated: wheelsets, couplers, decals, paint, and adhesive.

Additional Parts Required

• Couplers: HO scale couplers to suit your layout standard
• Wheelsets: HO scale wheelsets to suit the model
• Paint: Paint to match your chosen prototype finish
• Glue / Tools: Suitable modelling adhesive, hobby knife, sanding tools, and paints

Recommended Products

Pairs well with:

• Other Australian National industrial rolling stock
• Steelworks and industrial wagons
• Compatible decals and finishing accessories

Typical Train Consist

This wagon is best represented in dedicated industrial traffic associated with Whyalla coke operations and steelworks services. It also makes a standout feature wagon in a rake of related industrial hoppers due to its unique one-off prototype status.

Production Information

Each model is produced to order using high-resolution resin printing to maintain consistent detail and quality.

Typical production time: 1–2 weeks

Minor cleanup or finishing may be required before assembly.

About Kandu Workshop

Kandu Workshop produces Australian prototype rolling stock kits designed for modellers who want unique and historically accurate models not commonly available commercially. Models are produced using high-resolution resin printing and are designed for straightforward assembly and finishing.
